Frequency Converters

Since our inception in the late 1960’s, MU-DEL, we as Tel Data System GmbH represent in Germany, has designed and manufactured a Broad Array of Standard as well as Unique application Frequency Converters. Our Converters are world famous for their specifications as well as their great reliability to perform under many environmental conditions. For your special application, please contact the factory, as we provide many options to customize these Frequency Converters that start from baseband to 40 GHz.

MU-DEL’s Frequency Converters are a reliable means for the conversion of Telemetry, Satellite, Terrestrial Communications, Meteorological, Radar, VSAT and other signals from one band to another. Conversions may be from higher to lower frequencies (Down Converters), lower to higher frequencies (Up Converters) or Frequency Translators, depending on the requirement of the system where the converters will operate. The Frequency Converters will operate in the Frequency Range from baseband to 40 GHz.

System noise contribution is minimal and signal handling capabilities are intact and uses Single, Double or Triple Conversion Techniques to insure excellent performance. The Converters accept input signals in frequency ranges specified by the user. In frequency agile units, the exact Input or Output frequency is selectable by Front Panel Controls or through a Rear Panel Interface. The standard interfaces are RS-232, RS-422, and IP (Ethernet). Special customer interfaces can also be provided. All units provide Output Frequencies as required by the user, suitable to drive a receiver or similar load. Manual or automatic gain control can be provided.

MU-DEL custom manufactures each Converter individually and can accommodate most desired features. The design and production of the Converters is based on long experience utilizing the latest developments in component techniques. Therefore, Mu-Del is able to provide the best performance and highest reliability possible. Tel Data System GmbH and the manufacturer will closely work with you to arrive at the optimum converter configuration.

Following are some of the MU-DEL features for the Frequency Converters:

Fixed Tune or Frequency Agile Converters
Tuning steps as low as 0.1 Hz
Phase Locked Loop, Single or Multiple Conversion
Wideband or Narrowband Conversion
State-of-the-Art Noise Figure
High Intercept Points
Low Phase Noise
Frequency Monitoring
Loop Back
Muting
Fully Self-Contained
Front Panel Indicators, Displays, Keypads
External or Internal Frequency Reference
Custom Input Filtering
Safety and Alarm Provisions
Various Mechanical Configurations
Rack Mount or Weather Proof Enclosures

Tel Data System GmbH is always happy to help with your requirement. Should you have any Special Need, please let us know, we try to find a solution!

*DC = Down Converter | *UC = Up Converter

DC fixed: IF to Base Band Converter



DC fixed: Modular Down Converters Eleven Independent Channels (Modular)



DC fixed: IF to Tape Converter



DC fixed: Fixed Tuned Down Converters, Telemetry Series (1.4-2.5 GHz to 215-315/320 MHz)



DC fixed: IF to Base Band Converter, Communication Series (1.5-14.5 GHz to 70 or 140 MHz)



 DC fixed: L-Band Single Channel Down Converter (1544.5 MHz to 70 MHz)



DC fixed: Fixed Tuned L- or S-Band Down Converter (selectable) (1544.5 or 2226.472 MHz to 70 MHz)



DC fixed: L-Band Single Channel Down Converter (1630-1750 MHz to 10, 70, 140, 370 or 720 MHz)



DC fixed: Fixed Tuned Down Converter (2039.645 MHz to 75 MHz)



DC fixed: Fixed Tuned S-Band Down Converter (2.2-2.3 GHz to 10, 70, 140, 370 or 720 MHz)



DC fixed: X-Band Block Down Converter (8.0-8.5 GHz to 1.7-2.2 GHz)

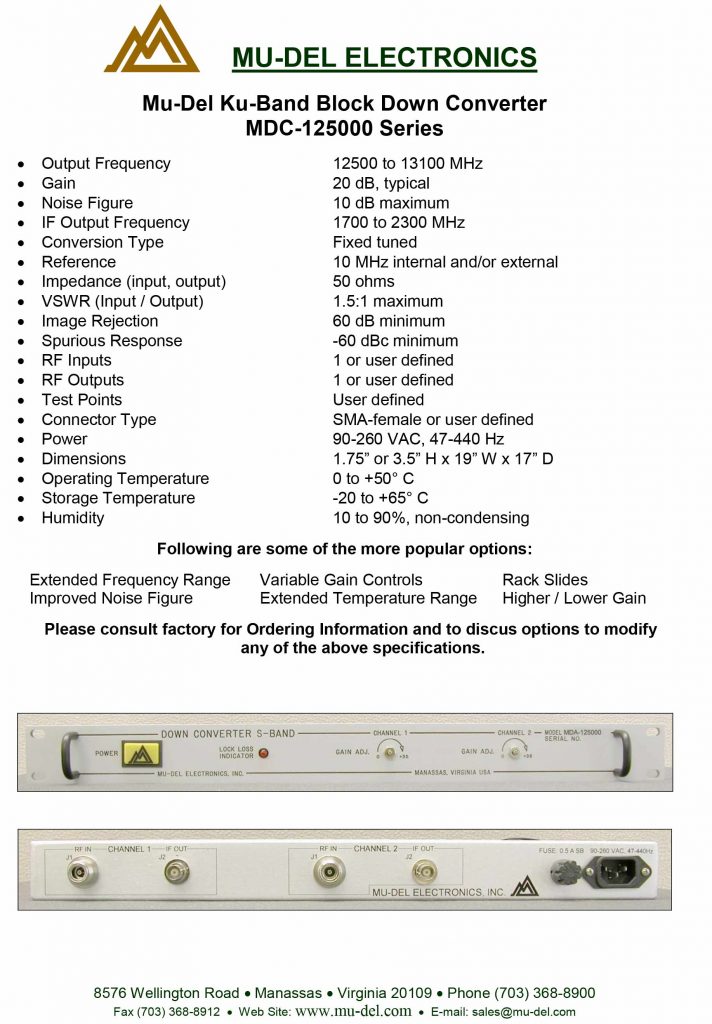

DC fixed: Ku-Band Block Down Converter (12.5-13.1 GHz to 1.7-2.3 GHz)

DC fixed: Ku-Band Block Down Converter (14.7-15.4 GHz to 1.7-2.4 GHz)

 DC fixed: Ka-Band Block Down Converter (31.8-32.3 GHz to 1.7-2.2 GHz

DC tunable: Down Converter tunable (1.6-2.7 GHz to 10, 70, 140, 370 MHz)

DC tunable: S-Band Series (2.2-2.3 GHz to 10, 70, 140, 370 or 720 MHz

DC tunable: Down Converter tunable (2.1-2.5 GHz to 10, 70, 140, 370 or 720 MHz

 DC tunable: X-Band Down Converter tunable (8.0-8.5 GHz to 10, 70, 140, 370, 720 or 1200 MHz

DC tunable: Ku-Band Down Converter (12.5-13.7 GHz to 10, 70, 140, 370, 720 or 1200 MHz

DC tunable: Three Channel Ku-Band Down Converter (13.4-14.0 GHz to 10, 70, 140, 370 or 720 MHz
